FLEXIBLE PIPES, ELECTRICAL CONDUITS
pvc flexible yellow
pvc flexible yellow
pvc flexible yellow

pvc flexible yellow

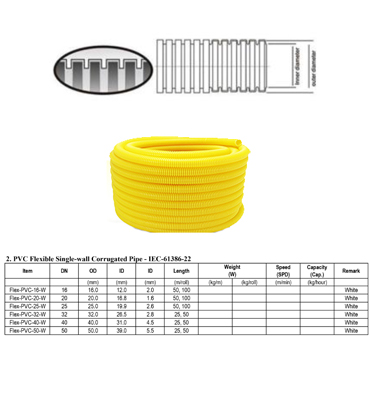

Product Name: PVC PIPE

Type:

Material: PVC Flexible Single- Wall Corrugated

Brand: TOYO

Color: Yellow

Size:

Unit: Piece

Standard: JIS C 8461- 23: 2005 & IEC - 61368-22

SELECTING TYPES OF SAME TYPES

pvc flexible white
pvc flexible white

OPTIONAL TO PURCHASE ANY OTHER PRODUCT

ReducingTee
ReducingTee
Reducing Tee
Reducing Tee

1. General Introduction

PVC Flexible Single-Wall Corrugated Pipe is made from soft, high-quality PVC plastic with a corrugated outer surface. This structure enhances mechanical strength and flexibility, making the pipe ideal for use in wall, floor, and ceiling electrical systems in residential, commercial, and industrial projects.

2. Technical Properties (Detailed)

2.1. Structure

  • Material: High-grade soft PVC, free from heavy metals, environmentally safe.

  • Design: Single-wall corrugated structure for superior flexibility and resilience.

2.2. Outstanding Features

  1. High Flexibility

    • Easily bent and shaped to fit narrow or angled spaces where rigid pipes cannot be installed.

  2. Lightweight

    • Reduces transportation effort and simplifies installation in ceilings, walls, or floors.

  3. Impact Resistance

    • Corrugated outer layer improves toughness and protects against minor mechanical damage.

  4. Flame Retardant (Optional)

    • Some models are manufactured to self-extinguish when exposed to fire.

  5. Moisture and Electrical Insulation

    • Non-conductive and does not absorb moisture, ensuring safety in electrical systems.

  6. Corrosion Resistance

    • Resistant to mild chemicals, oils, and normal environmental conditions.

  7. Rodent and Insect Proof

    • Not affected by termites, ants, or cockroaches – safeguards internal wiring.

⚙️ 3. Roles – Practical Applications

3.1. In Residential Buildings

  • Used for electrical wiring inside walls and under floors in houses, villas, apartments.

  • Ideal for ceiling wiring in drywall or false ceilings.

  • Protects cables for CCTV, LAN, or telephone in small-scale projects.

3.2. In Industrial Settings

  • For control system wiring in factories and production facilities.

  • Protects power and signal cables in automation systems.

3.3. In Telecommunication

  • Used to protect fiber optic cables, coaxial cables, or internet lines – suitable for shallow underground or wall installations.

3.4. In Temporary Setups

  • Excellent for temporary electrical setups in events, exhibitions, or outdoor installations due to ease of installation and removal.

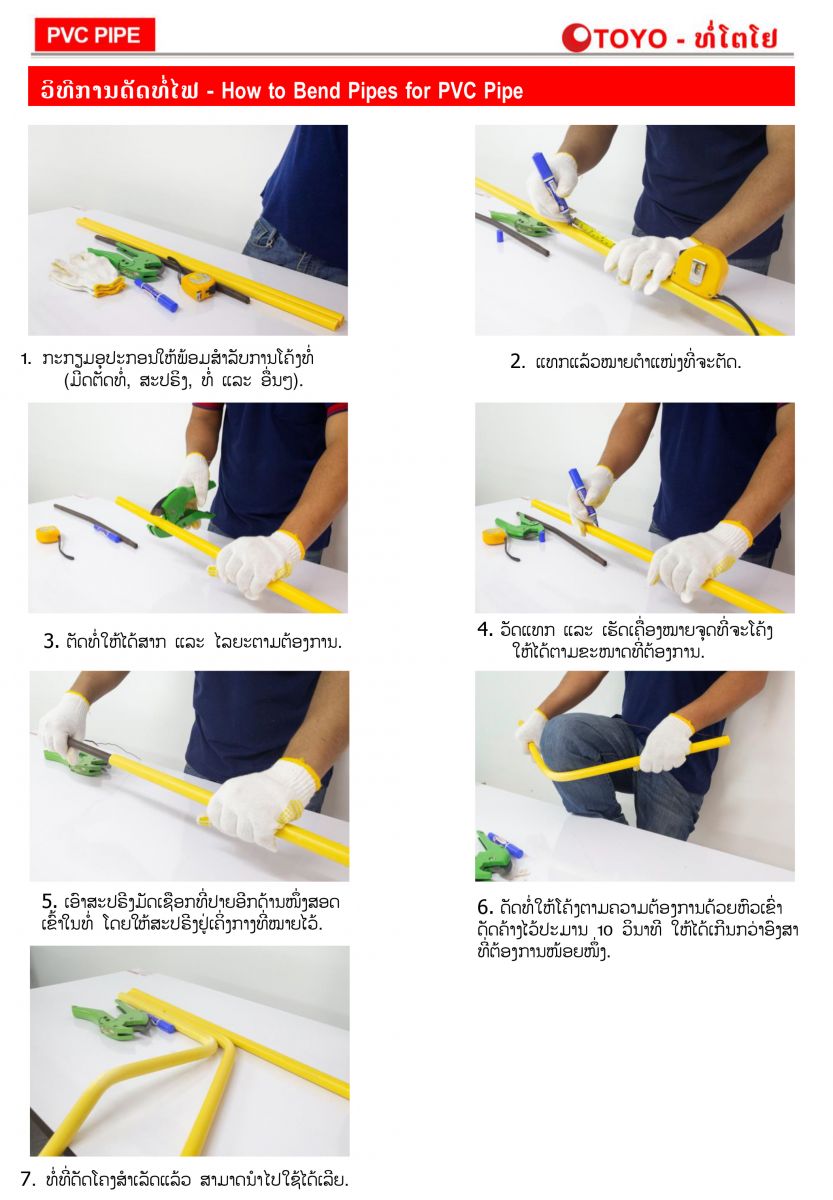

1. Ensure all necessary equipment is ready for pipe bending, including a pipe cutter, bending spring, pipe, and other required tools.
2. Tag and clearly mark the location where the pipe will be cut.
3. Cut the pipe straight and according to the desired length.”
4. Measure and mark the location to be bent based on the specified dimensions.”
5. Place the bending spring inside the pipe, ensuring that it is centered in the bending area.
6. Use a pipe bender to bend the pipe to the required angle, and hold it in place for approximately 10 seconds to achieve a slightly greater angle than needed.
7. Once the pipe has been successfully bent, it can be used as needed.

How to Use PVC Flexible Single-Wall Corrugated Pipe

1. Main Applications:

  • Used for wiring electrical cables in walls, floors, or ceilings (in residential and industrial construction).

  • Protects cables from impact, dust, water, and insects.

  • Ideal for indoor electrical systems, factories, offices, and warehouses.

2. Instructions:
