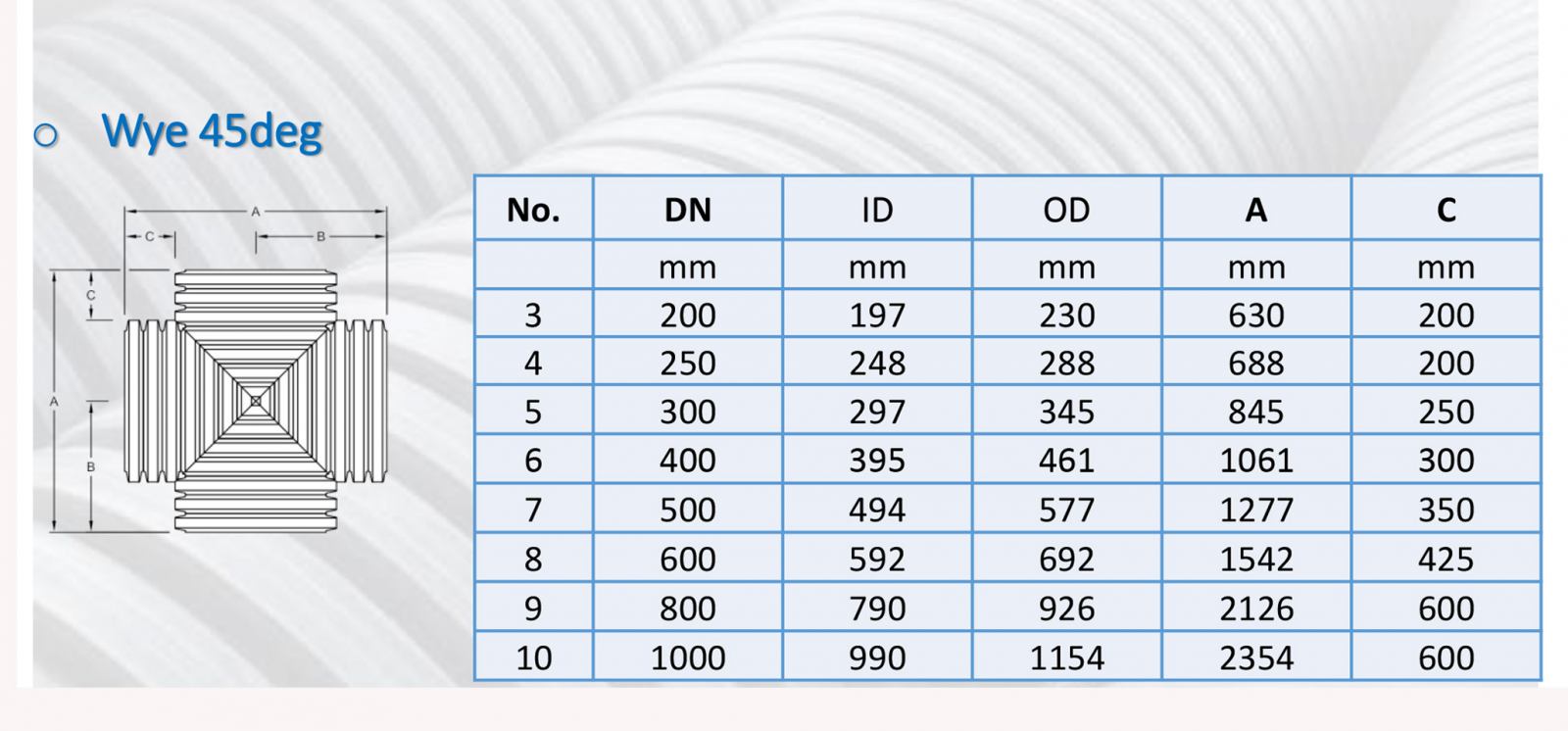

Wey 45deg

Characteristics of the Wye 45-Degree Fitting:

1. High-Quality HDPE Material:

   • Made from High-Density Polyethylene (HDPE), which is resistant to pressure, chemical corrosion, and UV rays.

   • Durable, long service life, and resistant to cracking and impact.

2. 4-Way Wye Design with 45-Degree Angles:

   • Designed with four inlets/outlets at 45-degree angles, suitable for splitting or merging flow directions.

   • The 45° angle helps reduce pressure loss, minimizes turbulence, and improves flow efficiency.

3. Lightweight and Easy Installation:

   • Lighter than traditional materials like cast iron or steel.

   • Easy to transport and install on-site, saving labor and time.

4. Various Sizes Available:

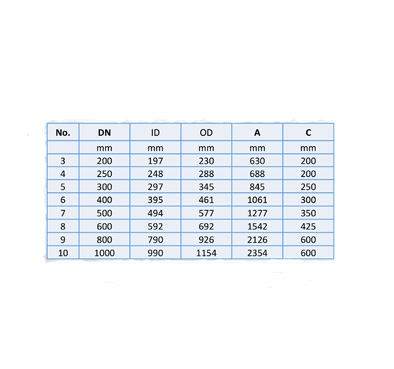

   • Comes in a wide range of diameters (from DN110 to DN1000), suitable for multiple technical applications.

5. Flexible Connection Methods:

   • Can be joined using butt fusion, electrofusion welding, or flange connections.

 Functions of the Wye 45-Degree Fitting:

1. Divides or Merges Flow from Multiple Pipelines:

   • For example: combining 3 branch lines into 1 mainline, or splitting 1 source into 3 directions.

2. Widely Used in Various Fields:

   • Urban water supply and drainage systems.

   • Industrial and domestic wastewater treatment.

   • Agricultural irrigation systems.

   • Rainwater drainage, basement drainage systems, etc.

3. Optimizes Flow Direction in Pipeline Systems:

   • The 45° design allows for smoother flow, reduces sediment buildup, and prevents blockages.

   • Enhances system efficiency and reliability.
